Product Details:
|
| Name: | Pipe Fitting DIN Standard Stainless Steel EN 1092-1:2007 Welding Neck Flange | Size: | DN10-DN3600 |
|---|---|---|---|
| Standard: | DIN,EN,ANSI/ASME,JIS | Technics: | Froged/Casting |
| Flange Type:: | WN Flange | Material:: | Stainless Steel |
| Packing: | Wooden Case,Plywood Or As Customers Requirements | Flange Facing:: | RF FF RTJ |
| Connection: | Welding | Pressure: | Class150-2500,PN6-PN100 |
| Surface Treatment: | Galvanized,Black Or As Customized | ||
| Highlight: | DIN Standard Welding Neck Pipe Flanges,Stainless Steel Welding Neck Pipe Flanges,EN 1092-1:2007 Pipe Flanges |
||

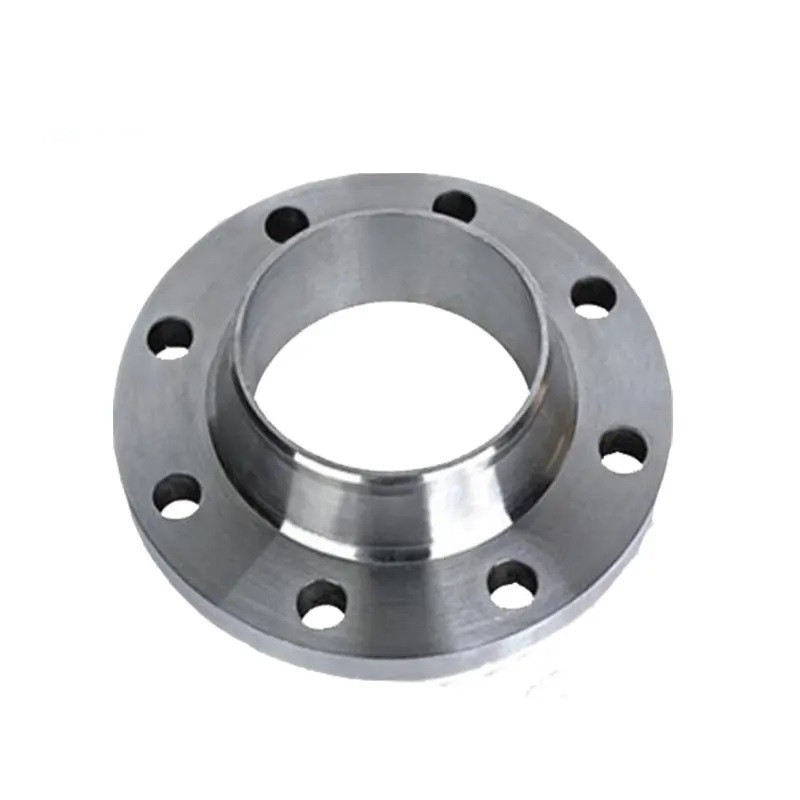

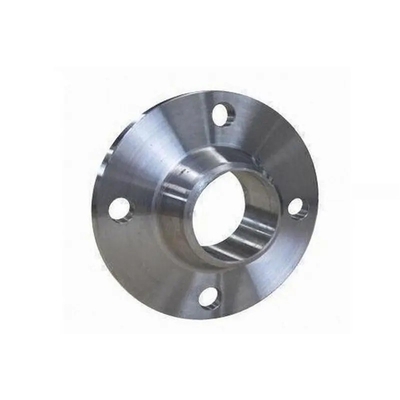

Pipe Fitting DIN Standard Stainless Steel EN 1092-1:2007 Welding Neck Pipe Flanges
| Name | Welding Neck Flange | |
| Standard | ANSI | ANSI B16.5 ASME B16.47 series A/B |
| DIN | DIN 2635... | |
| GOST | GOST 12820-80/GOST 12821-80/GOST 12822-80/ | |
| EN | EN1092-1:2002 | |
| JIS | JIS B2220-2004, KS D3576, KS B6216 KS B1511-2007 JIS B2261; JIS B8210 | |
| BS | BS4504 BS10 Table D/E | |
| Material | ANSI | CS A105/SA 105NSS 304/304L, 316/316L Alloy Steel: WHPY45/52/65/80 |
| DIN | CS RST37.2;S235JR SS 304/304L,316/316L | |
| GOST | CS CT20;16MN;SS 304/304L,316/316L | |
| EN | CS RST37.2;S235JR;C22.8SS 304/304L,316/316L | |
| JIS | SS400,SF440 SS 304/304L, 316/316L | |
| BS | CSRST37.2;S235JR;C22.8;Q235SS 304/304L,316/316L | |
| Pressure | ANSI | Class 150, 300, 600, 900, 1500 2500lbs |
| DIN | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| GOST | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| EN | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| JIS | 1K,2K,5K,10K,16K,20K,30K,40K | |
| BS | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| Size | ANSI | 1/2” – 60” |
| DIN | DN15-DN2000 | |
| GOST | DN15-DN1600 | |
| EN | DN15-DN2000 | |
| JIS | 15A-1500A | |
| BS | DN15-DN2000 | |
| Coating | varnish, yellow paint, anti-rust oil, galvanizing etc | |
| Usage | Used for the connection of all kinds of pipeline. | |
| Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry,and general pipes connecting projects etc. | ||
