Product Details:
|
| Product Name: | Hot Sale Sealing Metal Spiral Wound Gasket | Size: | DN15-DN1000 |
|---|---|---|---|
| Standard:: | ASME, BS, JIS And EN(DIN) | Material: | Carbon Steel, Stainless Steel |
| Head Code: | Roound | Feature: | Heat Resistance,durable |
| Type: | Spiral Wound Gasket With Inner And Outer Ring | Package: | Wooden Case, Plastic Bag+Carton |
| High Light: | bs metal wound gasket,dn1000 metal wound gasket |
||

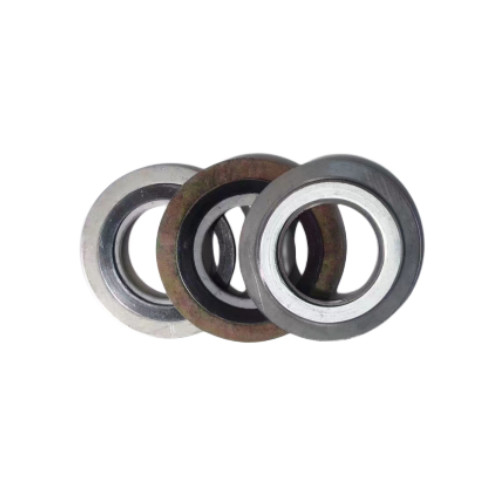

Product Description
Spiral Wound Gaskets are winding by "V" shaped metallic strip and soft non-metallic filler. According to
the requestment, the gaskets can be within inner and outer rings for improving the gaskets handling,
fitting and versatility. Depend on its excellent compresion resilience, it's suitable for sealing spots
where the alteration of temperature and pressure are frequenty.
Basic Type:
Basic type gasket: inner and outer diameters are reinforced with several piles of metal without filler to
give greater stability and better compression characteristics. Suitable for tongue and groove, male and
famale or grooved to flat face flange essemblies.
Inner Ring Type:
Solid inner metal ring acts as a compression stopper. To prevent accumulation of solids, reduce trubulent
flow of process fluids and minimize erosion, damages of gasket between flange bore and the inside
diameter, the annular space is filled up by solid inner metal ring;Suitable for male and female pipe flanges.
Outer Ring Type:
Solid outer accurately locates the gasket on the flange face to give the additional radial strength to prevent
gasket blowout and acts as a compression limiter. In case of installing the outer ring, it is very easy to
install the gasket to flange face because the end of outer ring will touch at bolts;
Suitable for use with flat face and raised face flanges. For class 900 and above an internal ring is recommended.
Inner & Outer Ring Type:
An inner ring and outer ring type gasket will give an additional compression limiting stopper for gasket inner
and outer side. It will prevent the corrosions on flange face at annular space;
Suitable for use with flat face and raised face flanges and specified for high pressure and temperature service,
Class 900 and above or where corrosive or toxic media are present.
| Metal Winding & Inner Ring | Filler Materials | Outer Ring Materials |
|
As Standard SS304(L) Others Stainless Steel 309 310 317L 321 347 Alloy 20 Monel 400 Titanium 1,2,7 Nickel 200 Inconel 600,635 Incoloy 800,825 Hastelloy B2 C276 Duplex 31803 Copper Inner ring: Carbon steel also abailable |
Flexible graphite PTFE Mica Ceramic Non-asbestos |
As Standard Carbon Steel others 304(L) 316(L) 317 310 321 347 410 Alloy 20 Monel 400 Titanium 1,2,7 Nickel 200 Inconel 600,635 Incoloy 800,825 Hastelloy B2 C276 Duplex 31803 |
Hebei Haihao Group Premium Pipeline Equipment Co.,Ltd is an international comprehensive pipeline products company. The factory is located in Cangzhou, "China’s capital of elbow and pipelines". The company is a factory of pipe products, the main products are pipe materials, pipe fittings, forged flanges and other pressure pipe components. Our products are exported to more than 20 countries and regions in the Middle East, Europe, Africa, America, Southeast Asia, South Korea, Pakistan, India, Singapore etc..Our company has strong technical force, advanced production equipment and complete detection means. Equipment level, production capacity and testing capacity are in the lead in the domestic industry.
